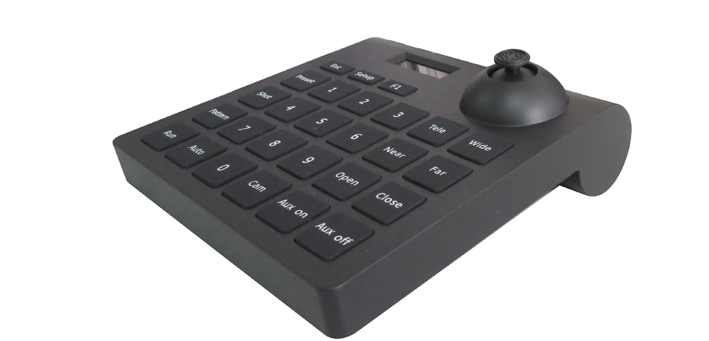

CNT-AHD7110
Product name : CNT-AHD7110
Model No. : PTZ KEYBOARD
Products Category: > HYBRID CAMERA > PTZ SPEED DOME
Application:
Used in the places where need quick control for the high speed dome camera, PTZ, motorized lens, outdoor wiper shield, etc.
Production Instruction:
Control keyboard is the indispensable rear-end control device in integrated security system, it is specially designed for the quick control of speed dome camera and PTZ which are unable to control conveniently through DVR, make the controlling of speed dome camera easier.
Specific Function:
l Display the current control address’s agreement and baud-rate real time.
l 4 level control speed can be set
l Speed dome ID can be switched directly by pressing ‘AUX ON’/ ‘AUX OFF’.
l Key-press sound volume can be adjusted
Protocol | Pelco-d, Pelco-d, Hikvision, Dahua |
Baud rate(bps) | 1200, 2400, 4800, 9600, 19200, 38400 |
Control Address | Control 255 dome camera, decoder at the most, address code:0-255 |
Communication Mode | RS485 half-duplex |
Joystick | control: up, down, left, right |
Menu and Key-press | English |
Warning Tone | Key-touch beep on/off |
Power Supply | DC 12V±10% |
Power Consumption | 5W MAX |
Working Temperature | 0°C-50°C |
Store Temperature | -20-70°C |
Package size(mm) | 200x190x110 |
Weight(Kg) | 0.9 |
