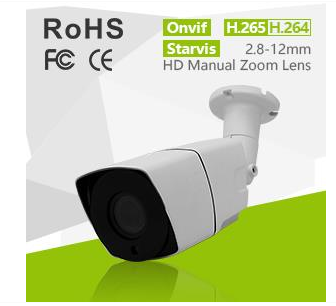

CNT-IP3701
Product name : CNT-IP3701
Model No. : 1.3/2/4 MP H265/H264 IP CAMERA
Products Category: > IP CAMERA(H265+/H265/H264) > H265 IP CAMERA
1. Embedded RTOS design, Dual Core 32 bit DSP
2. H.264 dual-stream encoding
3. Dual stream to adjust to the network flexibly
4. Optional function: Poe, AUDIO.
5. High quality with stable performance
6. Free client software support for record, preview, playback。
7. Support P2P, NAT traversal and mobile monitor
8. Support iPhone, iPad, Android Mobile
9. Adjustable digital WDR
10. 3D DNR, Privacy Mask, Motion Detection
11. Open SDK support for industry customer’s secondary development
12. Support onvif 2.4 protocol
mage Sensor | Hi3518EV200 | Hi3518EV200 | Hi3518EV200 | Hi3516CV300 | Hi3516D | Hi3516CV300 | |
Main processor | AR0130C | SC2135 | IMX323 | SONY323 | OV4689 | SONY290 | |
Resolution | 1.3mp | 2.0mp | 2.0mp | 2.0mp | 4.0mp | 2.0mp | |
Day/Night | ICR | ||||||
Min.Illumination | Low LUX: 1.0LUX（Color） 0.1LUX (B&W) | Low LUX: 1.0LUX（Color） / 0.1LUX (B&W) | Low LUX: 0.1LUX（Color） / 0.01LUX (B&W) | Low LUX: 0.1LUX（Color） /0.01LUX (B&W) | Low LUX: 0.6LUX（Color） /0.08LUX (B&W) | Low LUX: 0.1LUX（Color） /0.01LUX (B&W) | |
Lens | 2.8-12mm | 2.8-12mm | 2.8-12mm | 2.8-12mm | 2.8-12mm | 2.8-12mm | |
IR LED | ￠12X8pcs | ￠12X8pcs | ￠12X8pcs | ￠12X8pcs | ￠12X8pcs | ￠12X8pcs | |
IR Distance | 60M | 60M | 60M | 60M | 60M | 60M | |
White Balance | Manual/Automatic | ||||||
OSD | YES | ||||||
Electronic Shutter | 1/2000 ~ 1/1000 | ||||||
VIDEO | |||||||
Compression | H.264 | H.265/H.264 | |||||
Max Image Resolution | 1280*960 | 1920*1080 | 1920*1080 | 1920*1080 | 4.0MP (2560×1440) | 1920*1080 | |
Frame Rate | 12--25FPS ( Adjustable) | 12--25FPS ( Adjustable) | 9--16FPS ( Adjustable) | 7--30FPS ( Adjustable) | 4MP @20 FPS, 2MP @30FPS, 1~30 FPS adjustable | 7--30FPS ( Adjustable) | |
Bit Rate | 100Kpbs~6Mpbs (Adjustable) | 200Kpbs~5Mpbs (Adjustable) | 200Kpbs~5Mpbs (Adjustable) | 200Kpbs~8000kpbs(Adjustable) | |||
AUDIO(Optiona) | |||||||
NETWORK | |||||||
Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, UDP,RTSP, PPPoE, SMTP, NTP, UPnP, FTP,etc | ||||||
Compliance | ONVIF 2.4 | ||||||
PC Client & Browser | UC2, IE,seetong | ||||||
Mobile Phone | iPhone,iPad,Android Mobile | ||||||
INTERFACE | |||||||
Video Output | RJ45 | ||||||
LAN | 1 RJ45 10/100 ethernet port | ||||||
GENERAL | |||||||
Working Temperature | -10 C ~ + 50 C | ||||||
Working Humidity | 0% ~ 90% | ||||||
Power Supply | DC12V ,1A | ||||||
Dimension | W319*D89*H83mm | ||||||
Weight | 1.6Kg | ||||||
